automatic steel wheel rim manufacturing line

FOB Reference Price:Get Latest Price
US $1,000,000-2,000,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
LittleDuck
Model Number:
rim line
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Application 1:
car wheel rim at diameter 13-18inch
Application 2:
truck and bus rim at diameter 17.5-26inch
Application 3:
tractor rim at diameter 20-54 inch
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
steel pallet/steel case/wooden case
Port
Qingdao
Lead Time :
4-6months

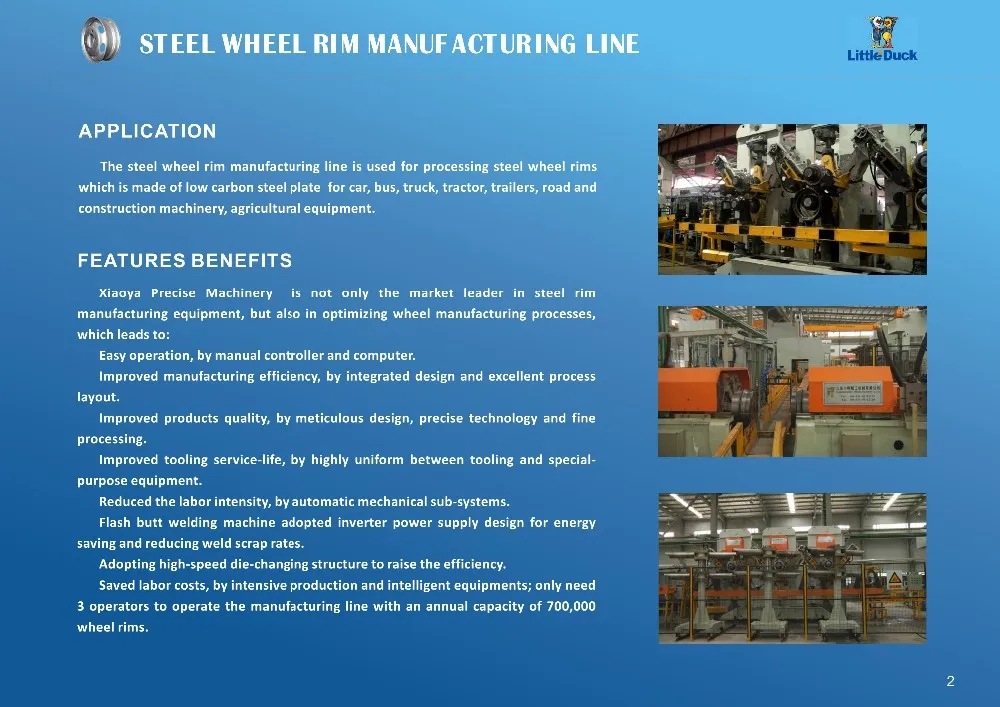

STEEL RIM MANUFACTURING LINE

LittleDuck Steel Rim Manufacturing Line can produce automatically and efficiently steel rim of cars wheel, truck wheel and agricultural vehicle wheel.

Rim Production Range:

>>car rim line, rim diameter 13inch to 18inch, rim width 3inch-10inch, thickness≤4mm

>>truck bus rim line: rim diameter 17.5inch to 26inch, rim width 5.5inch-16inch, thickess≤8mm

>>tractor rim line: rim diameter 20inch-54inch, rim width 7-28inch, thickness≤8mm

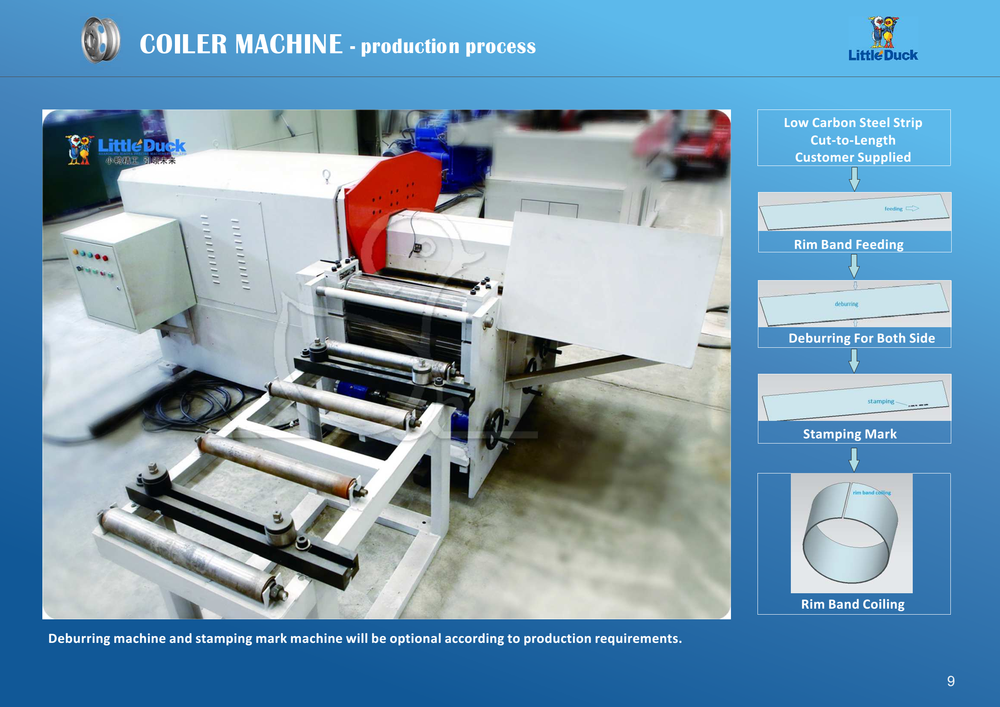

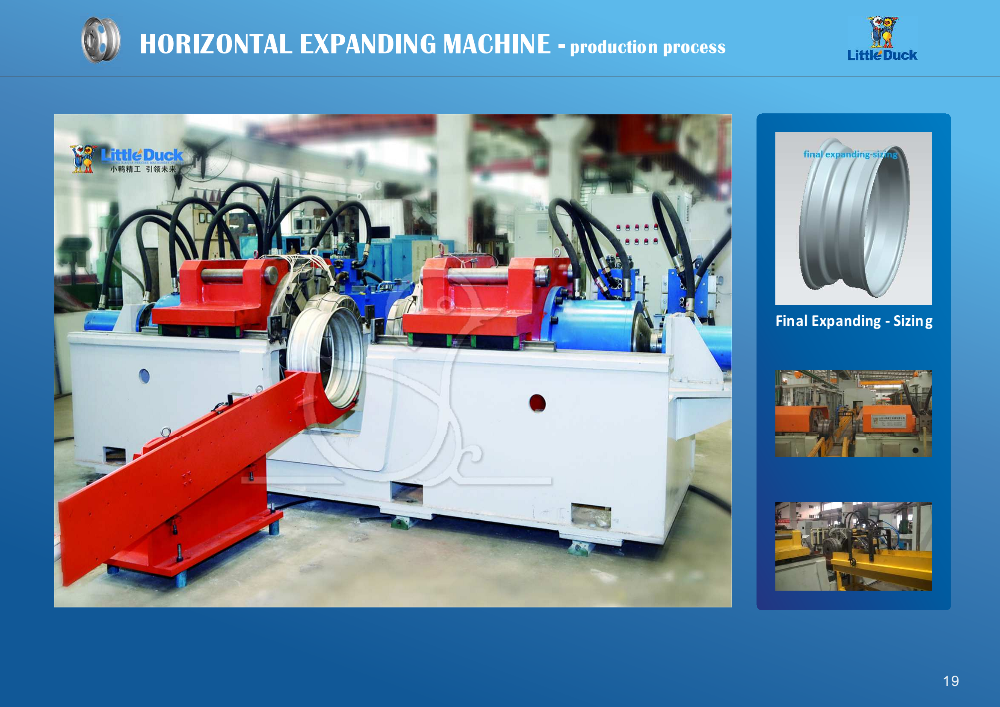

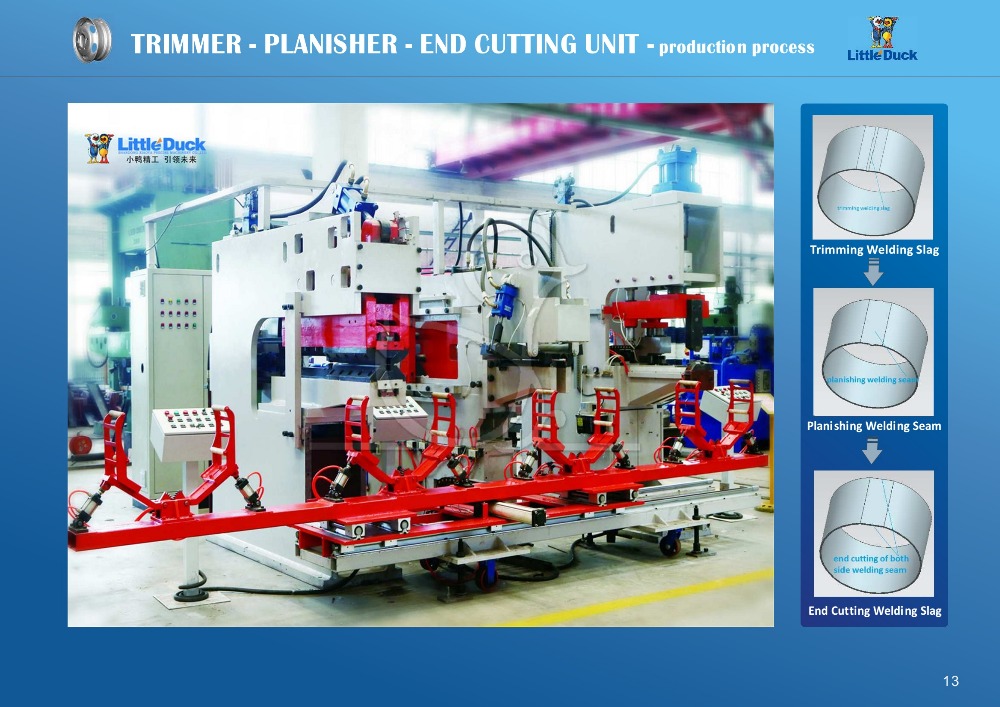

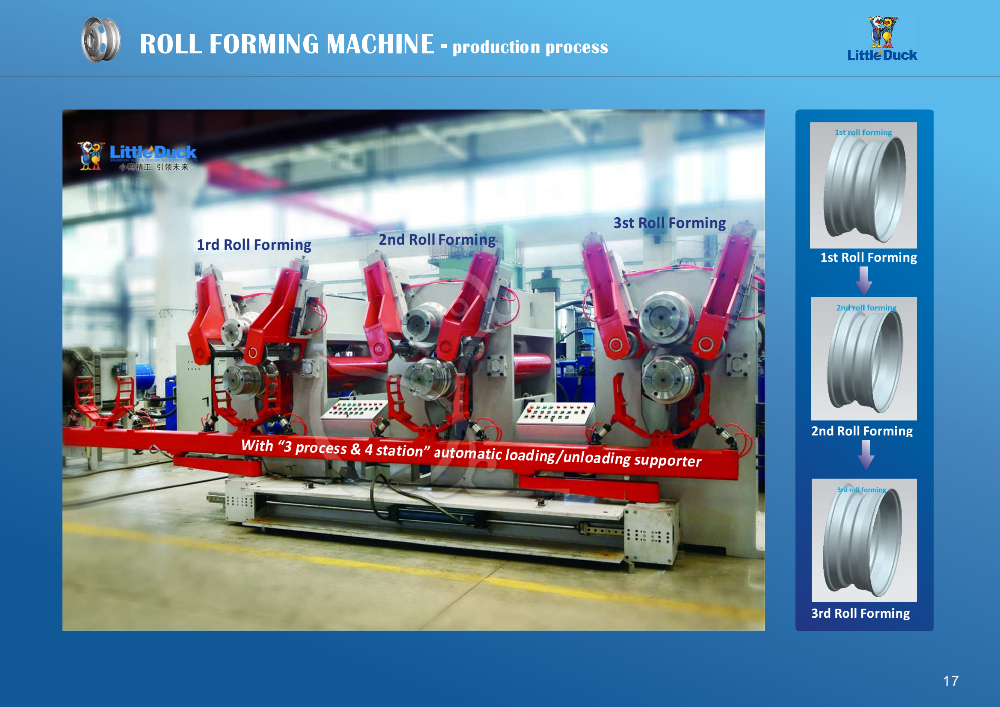

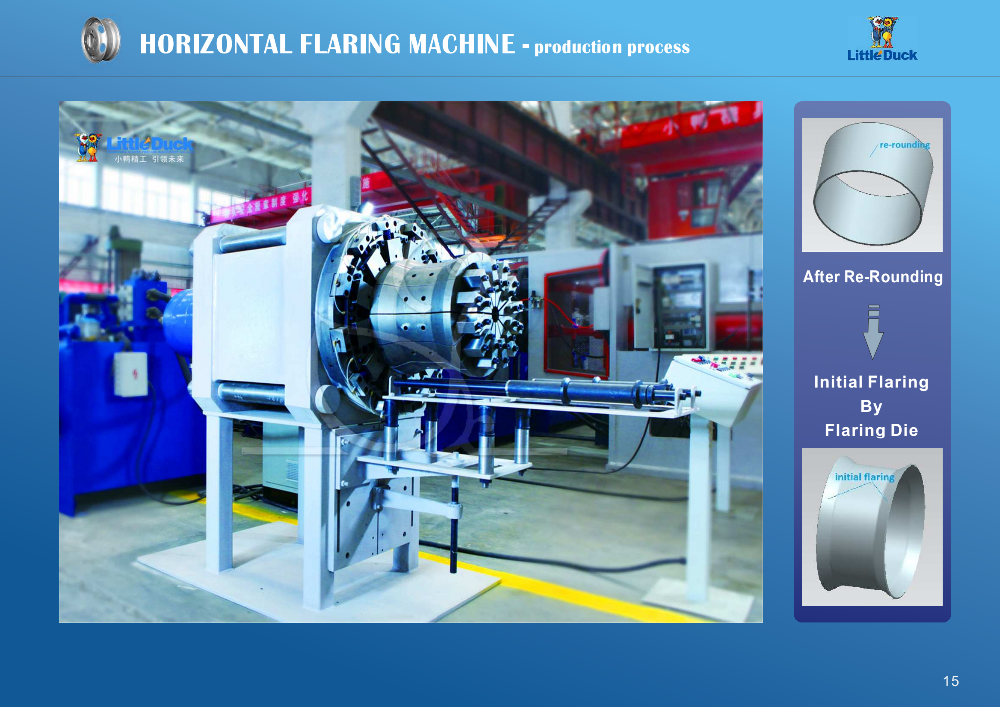

Its main equipments include coiling machine, flash butt welding machine, welding-slag trimming machine, end cutting machine, flaring machine, roll forming machine, rim expanding machine, necessary tooling and automatic PLC control system.

rim line 2

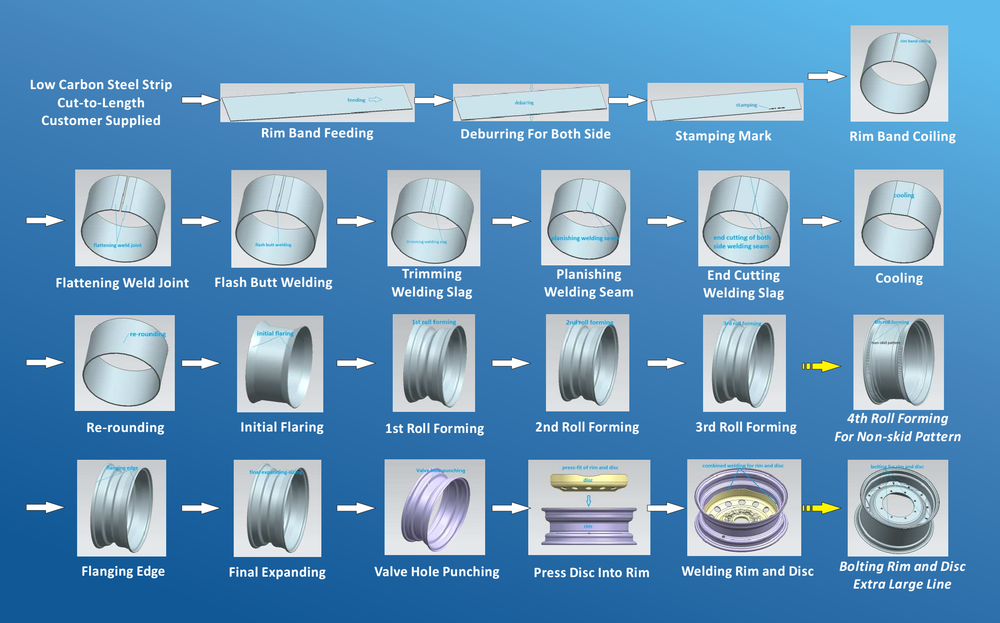

Technology Process of Rim







Features

  1. Fully automatic control, by manual controller and microcomputer.
  2. Improved labor efficiency, by integrated design and excellent process layout.
  3. Improved products quality, by meticulous design, precise technology and fine processing.
  4. Improved tooling service-life, by highly uniform between tooling and special-purpose equipment.
  5. Reduced the labor intensity, by automatic mechanical sub-systems.
  6. Saved labor costs, by intensive production and intelligent equipments;

    only need 3 operators to operate the manufacturing line with an annual capacity of 700,000 wheel rims.

 rim line 1

Layout of Car Wheel Rim Line




Layout of Truck Bus Rim Production Line
truck rim line


Layout of Tractor Wheel Rim Production Line
tractor line



Production Equipments

 paste-pic-dp_uuid_uais8

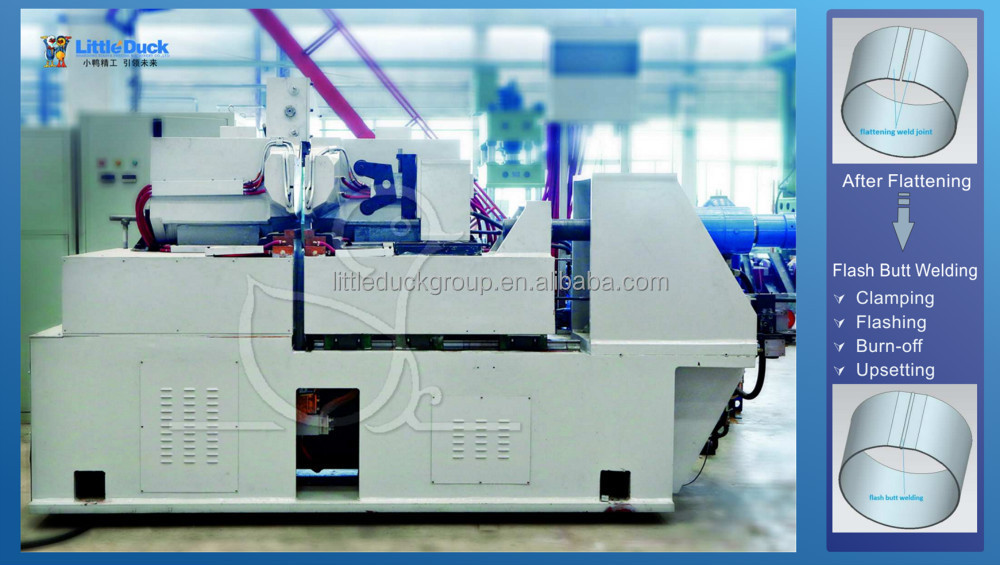

butt welder1



HTB1Ul4XKFXXXXX4XVXXq6xXFXXXR



HTB1A.xBKFXXXXaMXXXX760XFXXX0



HTB1YNs3KpXXXXX5XFXX760XFXXXb



HTB1CnxiKFXXXXXpXXXX760XFXXXS



HTB1JlRbKFXXXXcMXXXX760XFXXXQ



HTB1yx8xKFXXXXbkXXXX760XFXXXb



HTB1Yw8uKFXXXXaJXpXXq6xXFXXXB
